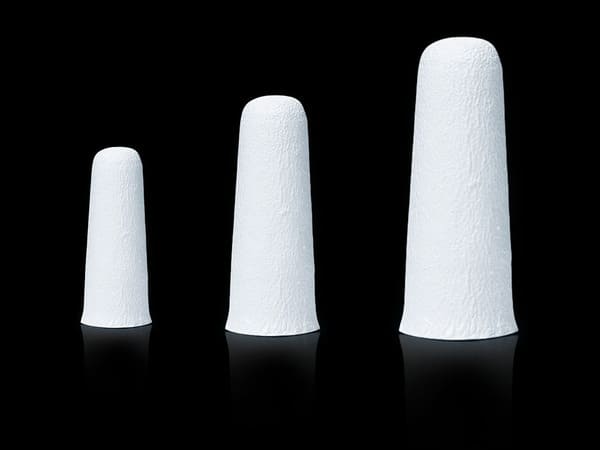

GLASS MICROFIBER THIMBLES
High-Temperature Extraction Solutions for Specialized Applications
Description
High-purity glass microfiber thimbles manufactured from 100% pure borosilicate glass are available for specialized applications. The thimbles are completely free of binders or additives and can be used at temperatures up to 500°C or when using solvents that are incompatible with cellulose thimbles. These thimbles are also used in pollution monitoring techniques (0.8 μm nominal particle retention). Typical thickness: 1.7 mm
Features & Benefits
• Available in a range of sizes and wall thicknesses to suit your application
• Designed to fit most commercially available Soxhlet extractors
• No binders are added
• High-temperature resistance up to 500°C
• Compatible with aggressive solvents
Applications
• Smokestack gas monitoring
• Soxhlet extraction
• Analyzing pesticide residues
• Determining oil or fat content of foods (e.g., French fries)
• Analysis of oil and grease in solid wastes
Technical Specifications
|
product name |
Size(mm) | Weight (g/㎡ ) | Wall Thickness (mm) | Air Flow at 2 bar
(L/㎡ sec) |
Quantity/pack |
|
Glass Microfiber Thimbles |
19 x 90 | 1.6 | 1.2 | 22 | 25 |
|
22X80 |
2 | 1.6 | 21 |
25 |
|
|
25X100 |
2.7 | 1.6 | 21 |
25 |
|
|
26X60 |
1.8 | 1.5 | 18 |
25 |
|
|
25X80 |
1.9 | 1.5 | 18 |
25 |
|
|
30 x 100 |
3 | 1.5 | 33 |
25 |
|
|
33 x 94 |
3.5 | 1.5 | 29 |
25 |
|
| 43X123 | 6.5 | 1.7 | 50 |
25 |
Customized other specifications and sizes
